Name: Stainless Steel Metal Bellows
Brand: QINFENG
SKU: 00021
Rating: 4.9 (61 reviews)

Stainless Steel Metal Bellows

Stainless steel bellows for flexible connection in liquid cooling piping systems. Absorbs thermal expansion, mechanical vibration, and connection-end displacement. Designed for data centers and high-performance cooling equipment.

Nominal pressure	PN6/PN10
Temperature range	-40 ℃ to 120 ℃
Test standard	GB/T 14525-2010

Product Description

The metal bellows compensates for thermal expansion, vibration, and connection-end displacement in liquid cooling loops, protecting pump and heat exchanger interfaces from stress fatigue. High temperature and pressure resistance suit continuous-duty cooling circuits. Strong corrosion resistance ensures long-term reliability with water and glycol-based coolants. The bellows design reduces mechanical stress across pipe connections, extending system service life.

Thermal Compensation

Absorbs pipe expansion and contraction during temperature cycling

Vibration Damping

Isolates pump vibration from connected piping and equipment

Corrosion Resistance

Durable stainless steel construction for long-term cooling fluid exposure

High Reliability

Designed for extended service life in continuous-duty applications

Technical Specifications

Nominal pressure	PN6/PN10
Temperature range	-40 ℃ to 120 ℃
Design standards	JB/T 6169-2006/GB/T 14525-2010
Test standard	GB/T 14525-2010
Applicable media	Water, ≤ 50% ethylene glycol/propylene glycol liquid

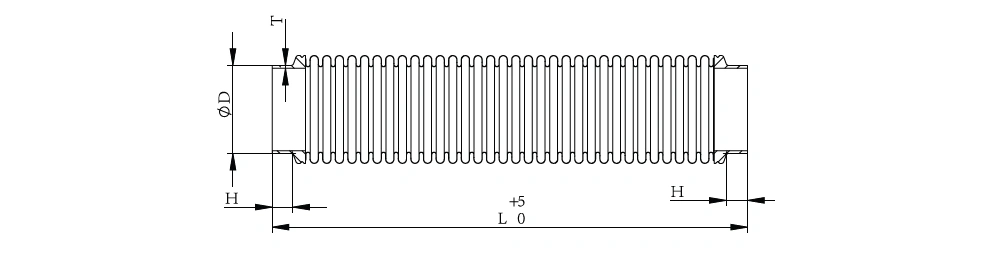

Overall dimensions

SIZE	φD	H	T	L0⁺⁵
45	45	15	1.5	Based on customer needs, the shortest (150mm)
48	48	15	1.5
51	50.8	15	1.5
57	57	15	2
63	63.5	15	2
76	76.2	15	2

Main part material

Number	Part	Material
1	Corrugated tube embryo	304/316L
2	Welded end of corrugated pipe	304/316L
3	Weaving net fixing ring	304/316L
4	Corrugated pipe woven mesh	304/316L

The technical specifications of Qinfeng products are for reference only, and there may be slight differences between the actual product appearance and that shown in promotional materials.

Qinfeng reserves the right to update or modify product design and technical information, and will not provide prior notice to customers regarding updates and modifications.

Please contact Qinfeng promptly for detailed specifications and the latest product parameter information.
