Integrated Full-Bore Manual Ball Valve

Stainless steel ball valve with an integrated forged one-piece body. For media shut-off and regulation in liquid cooling and water supply/drainage applications. Straight-through full-bore design with Tri-Clamp connection.

Nominal pressure	1MPa
Temperature range	-40 ℃ to 100 ℃
Test standard	GB/T 13927-2022

Product Description

The integrated manual ball valve features a one-piece forged body that eliminates external leakage. The straight-through, zero dead-leg flow path ensures linear media passage with no retention or cross-contamination. A triple-seal stem design with patented anti-leak structure provides reliable long-term sealing. Mirror-polished internal surfaces meet high-purity requirements, while the full-bore ball channel minimizes flow resistance. Fully degreased for liquid cooling circuits.

Integrated Forged Body

No dead legs, zero retention, eliminates external leakage

Triple Stem Sealing

Patented anti-leak design for reliable long-term performance

Straight-Through Full Bore

Equal-diameter ball channel for minimal pressure drop

Ultra-Clean Finish

Mirror-polished surfaces for high-purity coolant compatibility

Technical Specifications

Nominal pressure	1MPa
Temperature range	-40 ℃ to 100 ℃
Connection standard	GB/T 12224-2015
Test standard	GB/T 13927-2022
Applicable media	water, ≤ 50% ethylene glycol/propylene glycol liquid

Overall dimensions

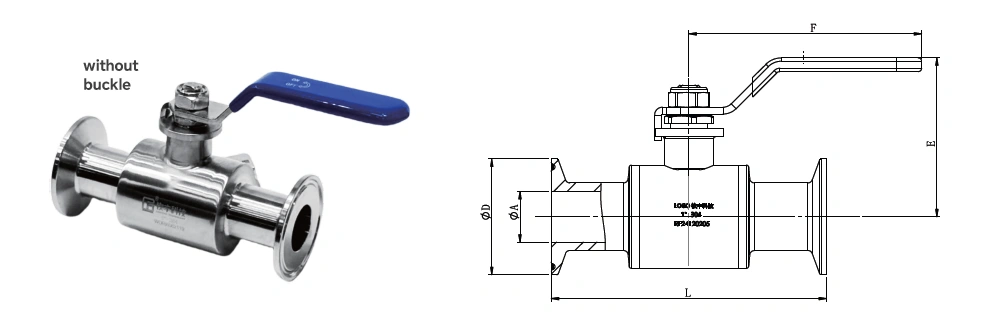

Quick installation integrated straight through ball valve (without buckle)

SIZE	L	ΦD	ΦA	E	F
1.25"	120	50.5	28.1	85.5	110

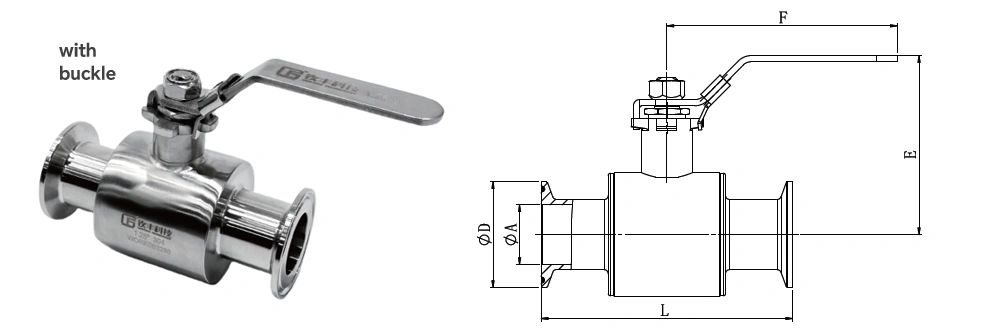

Quick installation integrated straight through ball valve (with buckle)

SIZE	L	ΦD	ΦA	E	F
1.25"	120	50.5	28.1	85.5	110

Main part material

Number	Part	Material
1	Ball valve cover	304/316L
2	Ball valve ball	304/316L
3	Valve seat	PTFE
4	Ball valve body	304/316L
5	Valve stem gasket	PTFE
6	Valve stem	304/316L
7	O-ring	EPDM
8	Filler	PTFE
9	Wave spring	304/316L
10	Gland nut	304/316L
11	Lock nut	304/316L
12	Handle	304/316L

The technical specifications of Qinfeng products are for reference only, and there may be slight differences between the actual product appearance and that shown in promotional materials.

Qinfeng reserves the right to update or modify product design and technical information, and will not provide prior notice to customers regarding updates and modifications.

Please contact Qinfeng promptly for detailed specifications and the latest product parameter information.
