Name: Braided Stainless Steel Flexible Hose
Brand: QINFENG
SKU: 00022
Rating: 4.9 (61 reviews)

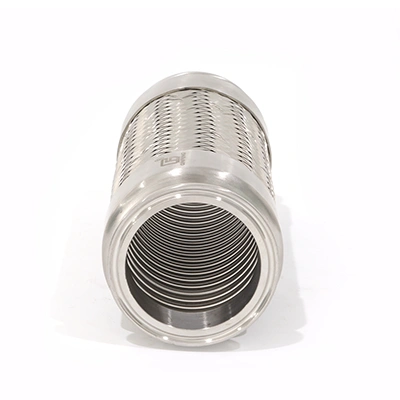

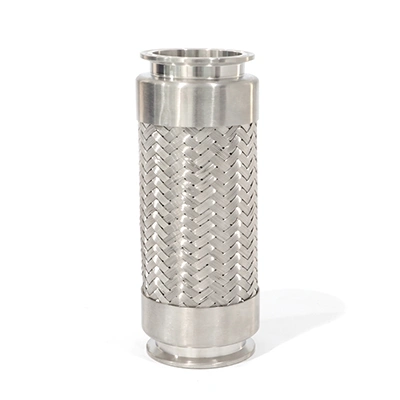

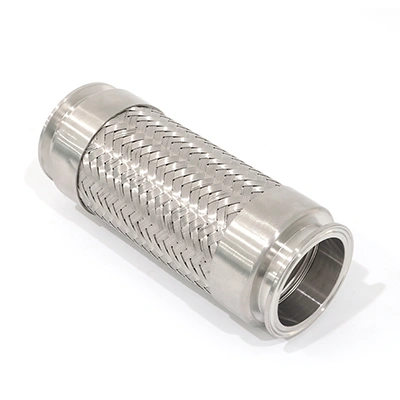

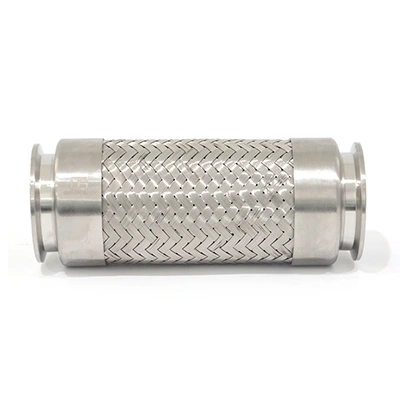

Braided Stainless Steel Flexible Hose

Braided stainless steel flexible connector. For vibration absorption and displacement compensation.

Nominal pressure	PN6/PN10
Temperature range	-40 ℃ to 120 ℃
Test standard	GB/T 14525-2010

Product Description

The metal-woven corrugated pipe provides flexible connections that absorb thermal expansion, mechanical vibration, and connection-end displacement in liquid cooling systems. Automatic welded seams ensure zero leakage at 1.6MPa, eliminating defects common in manual welding. Post-weld electrolytic treatment removes surface micro-cracks for a mirror-smooth inner wall, tripling corrosion resistance and fatigue life. Ultra-clean water cleaning guarantees particulate-free surfaces for continuous-duty cooling applications.

Welded Connection

Reliable zero-leakage joints without mechanical fasteners

Electrolytic Surface Treatment

Mirror-smooth inner wall for superior corrosion resistance

Ultra-Clean Water Cleaning

Contaminant-free surfaces for high-purity coolant compatibility

Braided Reinforcement

High pressure resistance and mechanical durability for long service life

Technical Specifications

Nominal pressure	PN6/PN10
Temperature range	-40 ℃ to 120 ℃
Design standards	JB/T 6169-2006/GB/T 14525-2010
Test standard	GB/T 14525-2010
Applicable media	Water, ≤ 50% ethylene glycol/propylene glycol liquid

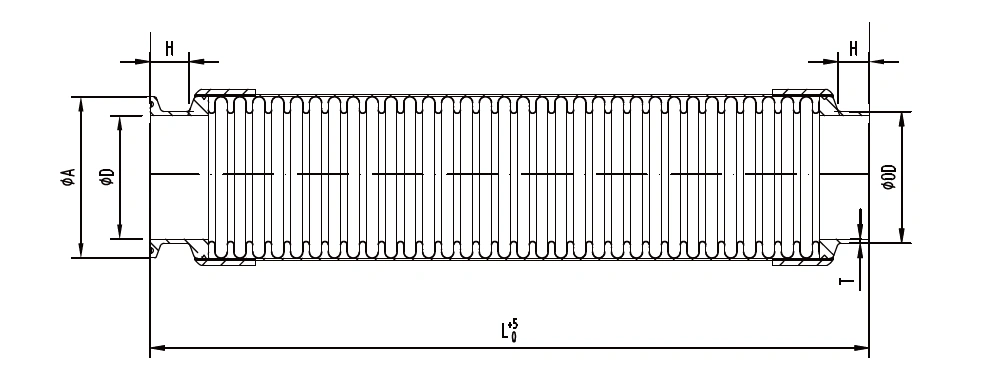

Overall dimensions

SIZE	φA	φD	H	φOD	T	L0⁺⁵
45	64	41	15	45	1.5	Based on customer needs, the shortest (150mm)
48	64	45	15	48	1.5
51	64	47.8	15	50.8	1.5
57	77.5	53	15	57	2
63	77.5	59.5	15	63.5	2
76	91	72.2	15	76.2	2

Main part material

Number	Part	Material
1	Corrugated tube embryo	304/316L
2	Bellows quick installation end/welding end	304/316L
3	Weaving net fixing ring	304/316L
4	Corrugated pipe woven mesh	304/316L

The technical specifications of Qinfeng products are for reference only, and there may be slight differences between the actual product appearance and that shown in promotional materials.

Qinfeng reserves the right to update or modify product design and technical information, and will not provide prior notice to customers regarding updates and modifications.

Please contact Qinfeng promptly for detailed specifications and the latest product parameter information.
