Rubber Bellows

Rubber bellows for flexible connection, vibration damping, and noise reduction in piping systems. Compensates displacement and provides sealing and mechanical protection. Designed for long-term stable operation across industrial applications.

* Support customization according to customer requirements

Request Custom Configuration Download
Rubber Bellows
    Product Description
    The rubber bellows compensates for connection-end displacement, absorbs vibration energy, reduces noise, and provides sealing and mechanical protection in piping systems. Temperature and pressure resistant with strong corrosion resistance, it performs reliably in applications requiring long-term stable operation. Designed for a service life of 8-10 years in continuous operation across industrial, HVAC, and cooling applications.
    Vibration & Noise Reduction
    Vibration & Noise Reduction
    Absorbs mechanical vibration and dampens system noise
    Displacement Compensation
    Displacement Compensation
    Accommodates connection-end movement and misalignment
    Temperature & Pressure Resistant
    Temperature & Pressure Resistant
    Reliable performance across wide operating ranges
    8-10 Year Service Life
    8-10 Year Service Life
    Designed for long-term continuous operation with minimal degradation
    Technical Specifications

    * Support customization according to customer requirements

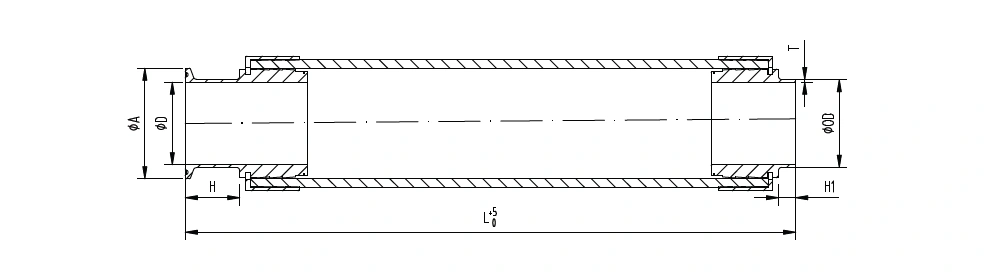

    Overall dimensions
    SIZE φA φD H1 H φOD T L0⁺⁵
    45 64 41 31.5 15 45 1.5 Based on customer needs
    48 64 45 31.5 15 48 1.5
    51 64 47.8 31.5 15 50.8 1.5
    57 77.5 53 31.5 15 57 2
    63 77.5 59.5 31.5 15 63.5 2

    Main part material

    * Support customization according to customer requirements
