Name: Welded Four-Way Angle Filter
Brand: QINFENG
SKU: 00023
Rating: 4.9 (62 reviews)

Welded Four-Way Angle Filter

Stainless steel angle-type four-way filter with weld-end connections. For particulate removal with multi-directional flow configuration in liquid cooling and industrial applications. Quick-access design for convenient element servicing.

Nominal pressure	PN10
Temperature range	-40 ℃ to 120 ℃
Test standard	GB/T26114-2010

Product Description

The welding angle four-way filter features an additional port for flexible flow routing while maintaining reliable filtration performance. Weld-end connections ensure permanent leak-free integration into cooling loop piping. The durable five-layer sintered mesh element delivers high filtration precision with excellent dirt-holding capacity. A quick-open lid provides convenient access for element cleaning or replacement, minimizing system downtime.

Four-Way Configuration

Multi-port design for flexible piping layouts and flow distribution

Weld-End Sealing

Permanent leak-proof connections for continuous-duty cooling loops

High Filtration Performance

Reliable particulate removal to protect downstream equipment

Easy Access

Quick-open design for convenient element servicing without pipe disassembly

Technical Specifications

Nominal pressure	PN10
Temperature range	-40 ℃ to 120 ℃
Production standard	GB/T26114-2010
Connection standard	ISO 2852-1993
Test standard	GB/T26114-2010
Applicable media	oil, gas, water, ethylene glycol, etc

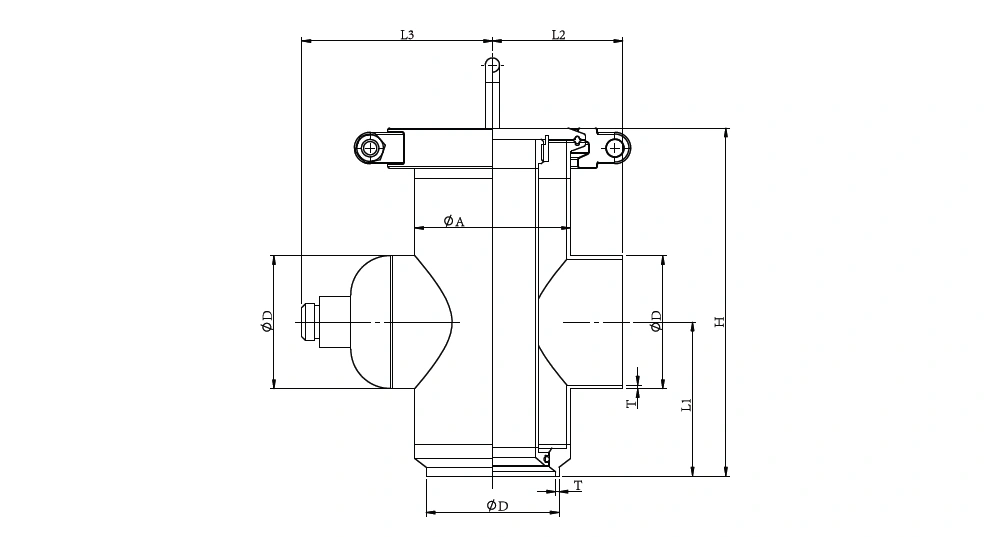

Overall dimensions

SIZE	φD	T	A	L1	L2	L3	H
2.5"	63.5	2	89	88	64.5	109	199
2.5"	63.5	2	89	88	74.5	109	199
3"	76	2	89	88	74.5	109	199
4"	101.6	2	114	171.5	120.5	156	339
139.7	139.7	2	159	172.5	150	158	342

Main part material

Number	Part	Material
1	High-pressure clamp	EPDM
2	Quick installation lid with handle and inner thread	304/316L
3	Clamp washer	304/316L
4	Cylinder	304/316L
5	O-ring	EPDM
6	Filter element	304/316L

The technical specifications of Qinfeng products are for reference only, and there may be slight differences between the actual product appearance and that shown in promotional materials.

Qinfeng reserves the right to update or modify product design and technical information, and will not provide prior notice to customers regarding updates and modifications.

Please contact Qinfeng promptly for detailed specifications and the latest product parameter information.
