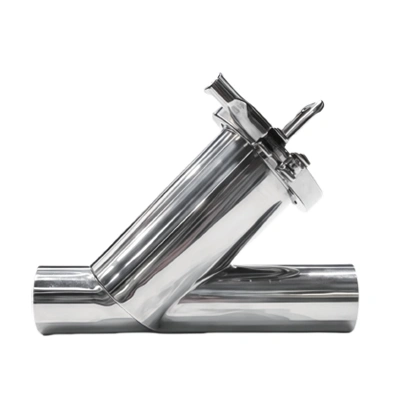

Name: Stainless Steel Y-Strainer
Brand: QINFENG
SKU: 00025
Rating: 4.9 (63 reviews)

Product Description

The Y-type strainer effectively removes particulates from pipeline systems, ensuring reliable operation of downstream equipment. Its simple Y-body design allows straightforward installation in horizontal or vertical pipe runs. The filter cartridge is accessed by removing the top cover for cleaning or replacement. Suitable for liquid cooling circuits, water supply/drainage, and gas pipeline applications.

Effective Filtration

Reliable removal of pipeline impurities to protect downstream equipment

Simple Structure

Easy to install and maintain with minimal downtime

Wide Compatibility

Suitable for liquid, gas, and oil-based media in cooling applications

Cost-Effective Protection

Extends service life of pumps, heat exchangers, and instrumentation

Technical Specifications

Nominal pressure	PN10
Temperature range	-40 ℃ to 120 ℃
Connection standard	DIN 11850-2009/ISO 1127-2018
Test standard	GB/T 14382-2017
Applicable media	vapor, liquid, oil, etc

Overall dimensions

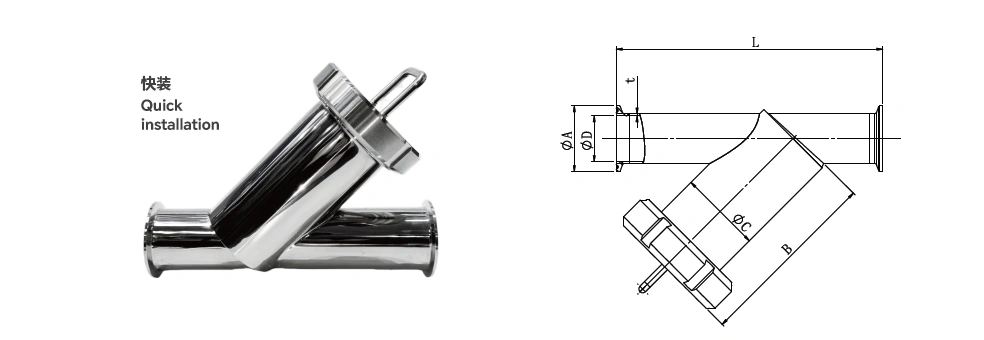

ISO Quick installation Y-shaped filter

SIZE	φA	φD	t	L	C	B
OD19	34	15.8	1.5	170	45	112
OD25	50.5	21.8	1.5	170	45	112
OD32	50.5	28.6	1.5	175	51	112
OD38	50.5	34.8	1.5	205	63	132
OD51	64	47.8	1.5	215	76	152
OD57	77.5	53.8	2	225	89	187
OD63	77.5	60.3	2	275	89	187
OD76	91	72.9	2	310	102	207
OD89	106	84.9	2	340	114	237
OD102	130	97.6	2	390	133	273

DIN Quick installation Y-shaped filter

SIZE	φA	φD	t	L	C	B
DN20	34	20	1.5	170	45	89
DN25	50.5	26	1.5	170	45	92
DN32	50.5	32	1.5	175	51	95
DN40	50.5	38	1.5	205	63	130
DN50	64	50	1.5	215	76	133
DN65	91	66	2	275	102	161
DN80	106	81	2	340	114	205
DN100	119	100	2	390	133	244

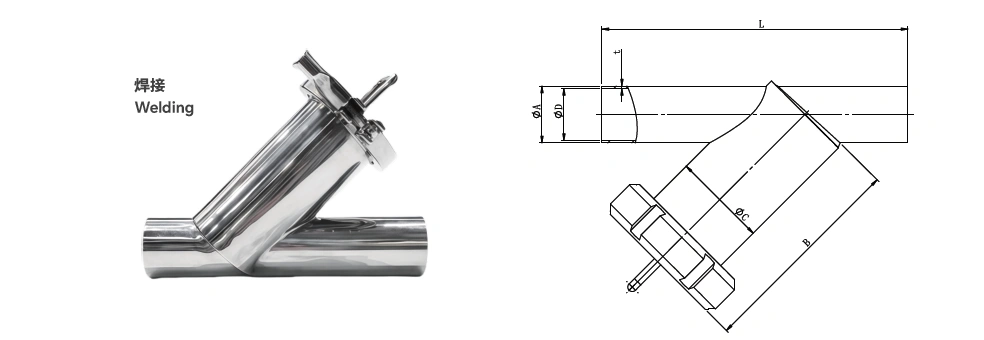

ISO Welding Y-shaped filter

SIZE	φA	φD	t	L	C	B
OD19	19	15.8	1.5	170	45	112
OD25	25	21.8	1.5	170	45	112
OD32	31.8	28.6	1.5	175	51	112
OD38	38	34.8	1.5	205	63	132
OD51	51	47.8	1.5	215	76	152
OD57	57	53.8	2	225	89	187
OD63	63.5	60.3	2	275	89	187
OD76	76.1	72.9	2	310	102	207
OD89	88.9	84.9	2	340	114	237
OD102	101.6	97.6	2	390	133	273
OD114	114.3	110.3	2	410	168	285

DIN Welding Y-shaped filter

SIZE	φA	φD	t	L	C	B
DN20	23	20	1.5	170	45	89
DN25	29	26	1.5	170	45	92
DN32	35	32	1.5	175	51	95
DN40	41	38	1.5	205	63	130
DN50	53	50	1.5	215	76	133
DN65	70	66	2	275	102	161
DN80	85	81	2	340	114	205
DN100	104	100	2	390	133	244
DN125	129	125	2	410	168	265

Main part material

Number	Part	Material
1	Y-shaped filter top cover	304/316L
2	Gasket	EPDM
3	Top cover nut	304/316L
4	Y-shaped filter housing	304/316L
5	Filter cartridge	304/316L
6	O-ring	EPDM

The technical specifications of Qinfeng products are for reference only, and there may be slight differences between the actual product appearance and that shown in promotional materials.

Qinfeng reserves the right to update or modify product design and technical information, and will not provide prior notice to customers regarding updates and modifications.

Please contact Qinfeng promptly for detailed specifications and the latest product parameter information.
