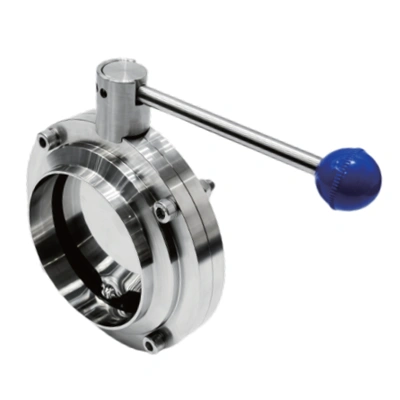

Two-Piece Butterfly Valve

Stainless steel butterfly valve with a two-piece body design. For media shut-off in liquid cooling and water supply/drainage applications. Lightweight construction with quick open/close operation.

Nominal pressure	PN10
Temperature range	-20 ℃ to 100 ℃
Test standard	GB/T 13927-2022

Product Description

The two-piece butterfly valve is designed for quick media shut-off in non-critical branch circuits and water supply/drainage lines. Its compact, lightweight structure ensures easy installation in confined spaces. The valve features low fluid resistance, fast opening and closing, and low operating torque for smooth manual actuation. A reliable EPDM sealing ring provides effective shutoff, while the degreased body meets the cleanliness requirements of liquid cooling systems.

Low Fluid Resistance

Smooth flow path minimizes pressure drop

Quick Open/Close

Fast operation for non-critical isolation

Low Operating Torque

Easy manual actuation throughout service life

Compact & Lightweight

Simple installation in space-constrained locations

Technical Specifications

Nominal pressure	PN10
Temperature range	-20 ℃ to 100 ℃
Design standard	GB/T 12238-2008
Connection standard	3A standard
Test standard	GB/T 13927-2022
Applicable media	liquids, gases, oils, foods, and various highly corrosive chemical media.

Overall dimensions

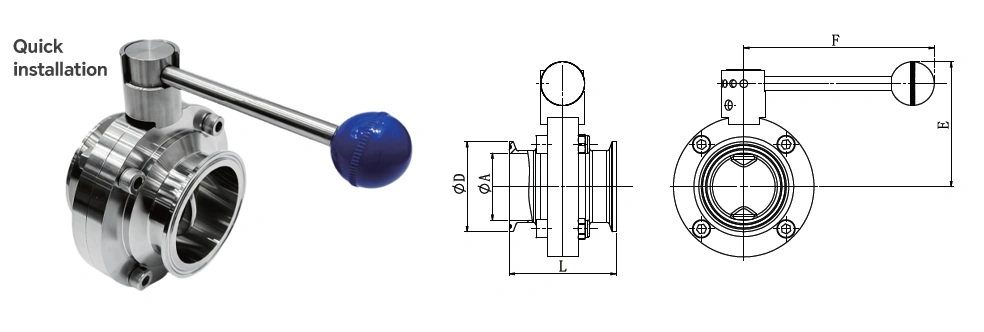

Quick installation of a two-piece butterfly valve

SIZE	L	ΦD	ΦA	E	F
1/2"	66	25.2	9.4	70	135
3/4"	66	25.2	15.8	75	135
1"	68	50.5	22.1	75	135
1.25"	68	50.5	28.5	75	135
1.5"	70	50.5	34.8	80	135
2"	76	64	47.5	90	135
2.5"	84	77.5	60.2	95	150
3"	84	91	72.9	102	150
4"	92	119	97.4	120	160

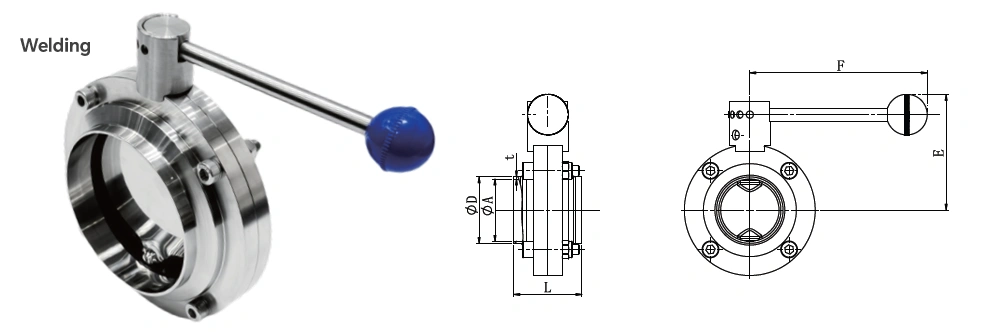

Welding a two-piece butterfly valve

SIZE	L	ΦD	ΦA	E	F	t
1/2"	50	12.7	9.4	70	135	1.65
3/4"	50	19.1	15.8	75	135	1.65
1"	50	25.4	22.1	75	135	1.65
1.25"	50	31.8	28.5	75	135	1.65
1.5"	50	38.1	34.8	80	135	1.65
2"	50	50.8	47.5	90	135	1.65
2.5"	56	63.5	60.2	95	150	1.65
3"	56	76.2	72.9	102	150	1.65
4"	60	101.6	97.4	120	160	2.1

Main part material

Number	Part	Material
1	Butterfly valve body	304/316L
2	Self-lubricating sleeve	PTFE
3	Sealing ring	EPDM
4	Butterfly version	304/316L
5	Handle	304/316L
6	Hex socket head bolt	304/316L
7	Self-locking nut	304/316L
