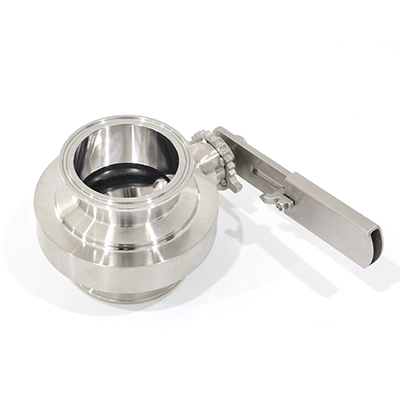

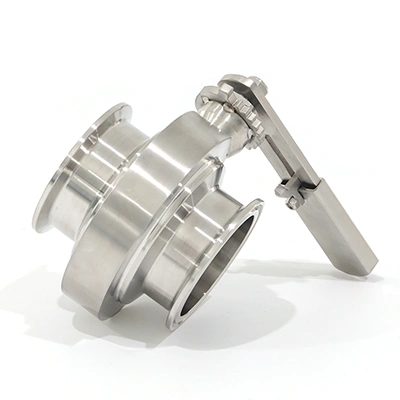

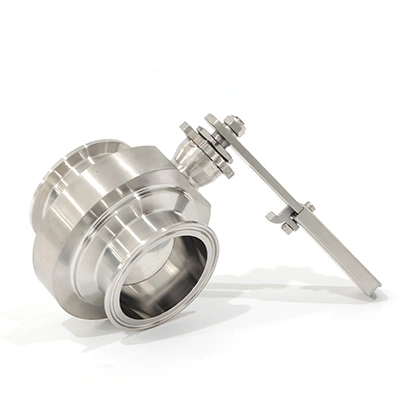

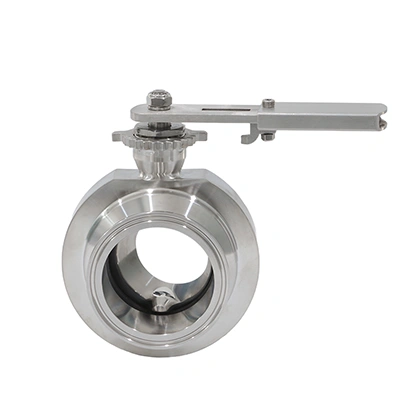

| Nominal pressure | PN10/PN16 |
| Temperature range | -40 ℃ to 100 ℃ |
| Test standard | GB/T 13927/API 598 |
| Nominal pressure | PN10/PN16 |
| Temperature range | -40 ℃ to 100 ℃ |
| Connection standard | Quick clip: ASME BPE |
| Welding | DIN 11850/ASME BPE |
| Test standard | GB/T 13927/API 598 |
| Applicable media | water, ≤ 50% ethylene glycol/propylene glycol liquid |

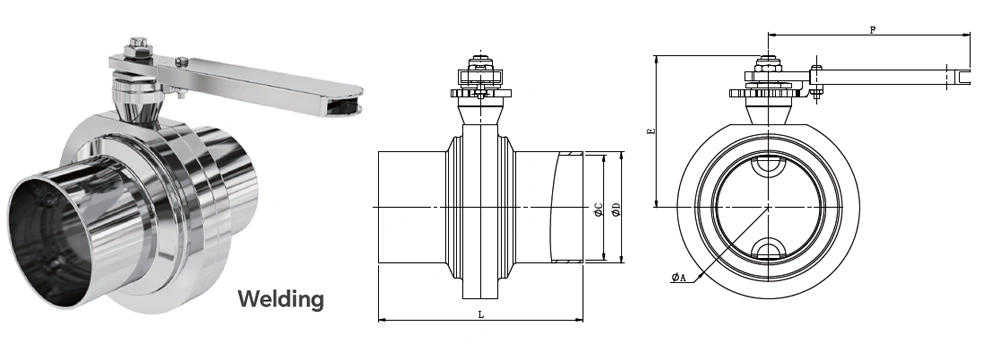

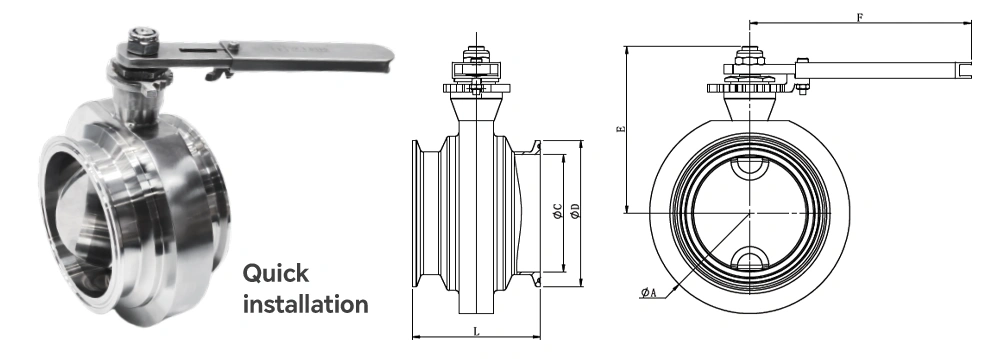

| SIZE | L | ΦD | ΦC | E | F | ΦA |
| 2" | 76 | 64 | 47.5 | 88 | 95 | 93 |
| 2.5" | 84 | 77.5 | 70.5 | 95 | 97 | 110 |
| 3" | 84 | 91 | 83.5 | 104 | 138 | 125 |
| 4" | 82 | 119 | 100 | 126 | 138 | 155 |
| SIZE | L | ΦD | ΦC | E | F | ΦA |
| Straight hand lever | 51 | 120 | 50.8 | 47.5 | 88 | 93 |
| 2.5" | 120 | 63.5 | 60.2 | 95 | 110 | |
| 3" | 140 | 76.2 | 72.2 | 104 | 125 | |
| 4" | 140 | 104 | 100 | 126 | 155 | |
| 5" | 200 | 129 | 125 | 156 | 190 | |
| Turbine head | 6" | 240 | 152.4 | 146.86 | 275 | 208 |
| 8" | 320 | 203.2 | 197.6 | 296 | 295 |
| Number | Part | Material |
| 1 | Valve body | 304/316L |
| 2 | Self-lubricating sleeve | PTFE |
| 3 | Sealing ring | EPDM |
| 4 | Butterfly valve disc | 304/316L |
| 5 | Stuffing box | 304/316L |
| 6 | Flat washer | PTFE |
| 7 | Sealing ring | 304/316L |
| 8 | O-ring | EPDM |
| 9 | O-ring | EPDM |
| 10 | Wave spring | 304/316L |
| 11 | Gland nut | 304/316L |
| 12 | Handle | 304/316L |
| 13 | Nut | 304/316L |
