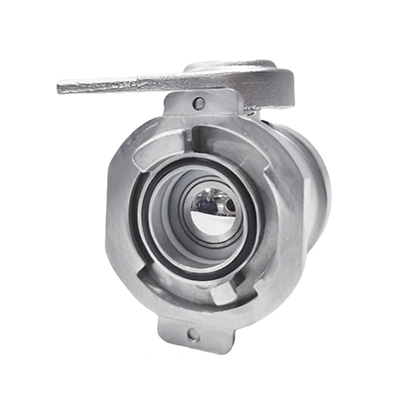

Interlocking Valve

Safety interlock ball valve with double-locking mechanism. For preventing accidental disconnection and coolant leakage during hot-swap maintenance in rack-level cooling.

* Support customization according to customer requirements

Product Description

The interlocking valve features a dual-locking mechanism that requires complete connection before the valve can open, and full closure before disconnection is possible. This prevents accidental coolant leakage and equipment damage during live maintenance. Strong bending moment resistance handles large hose loads in high-flow applications. Supports online hot-swap — new modules connect without system shutdown. Reserved ball valve interface for flexible system expansion.

Double-Locking Safety

Prevents accidental disconnection under pressure

Hot-Swap Capable

Module replacement without system shutdown

High Load Resistance

Withstands large hose pulling forces in rack deployments

Expansion-Ready

Reserved interface for future module integration

Technical Specifications

Part No.	Body size	Port size	Port type	A mm	B mm	Hex Size mm
FF9-25-B	1 inch	1 inch	Female BSPP	58	83.5	41
FF9-25-C	1 inch	1 inch	Sanitary flange	58	73
FF9-25-P	1 inch	1 inch	Barb type	58	87.25
FF9-25-P90	1 inch	1 inch	Barb type	58	111.6
FF9-38-B	1.5 inch	1.5 inch	Female BSPP	77.5	95	62
FF9-38-C	1.5 inch	1.5 inch	Sanitary flange	77.5	88.5
FF9-38-P	1.5 inch	1.5 inch	Barb type	77.5	123.5
FF9-51-B	2 inch	2 inch	Female BSPP	95	98	70
FF9-51-C	2 inch	2 inch	Sanitary flange	95	105
FF9-51-P	2 inch	2 inch	Barb type	95	178

Note:
The order number is for a single item.
Dimensions, threads, and seals can be customized according to the minimum order quantity

Overall dimensions

* Support customization according to customer requirements

Main part material

* Support customization according to customer requirements
